Products >> Rubber testing machine >>

  • Rubber DIN Abrasion Tester

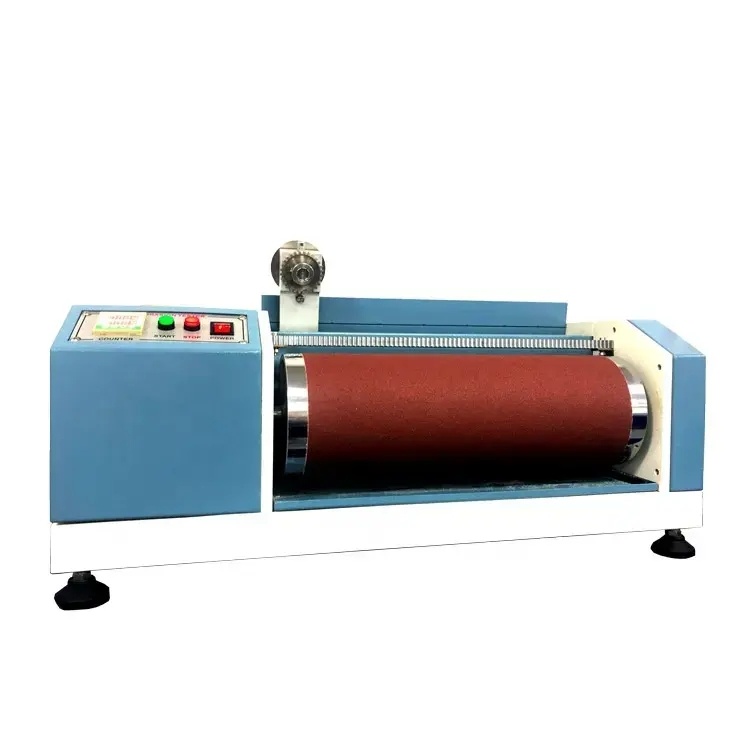

Rubber DIN Abrasion Tester

Rubber DIN Abrasion Tester

 DIN Abrasion Test Machine For Rubber Plastic Leather is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.

Corresponding Standard :

Technical Parameter
Machine Specifications
Specimen Size
dia 16mm, thickness at least 6mm
Test-arm weight
250 ± 5 (g)
Specimen Load
10N± 0.2N
Shift screw
6 teeth / inch
Diameter of wear wheel
dia 150mm
Limit rotation
85 rotate
Speed of wear wheel
40 ±1RPM
Set rotation
84 rotate (about 40M)
Emery cloth Specification
60 #, seam is less than 2mm
Drive Power
Testing Length
40M (about 84 rotate)
220V 50HZ/60HZ
Horizontal displacement
4.2mm / rotate
Machine Dimensions
600 X330 X420 (mm)
Testing Load
2.5N, 7.5N.
Machine Weight
