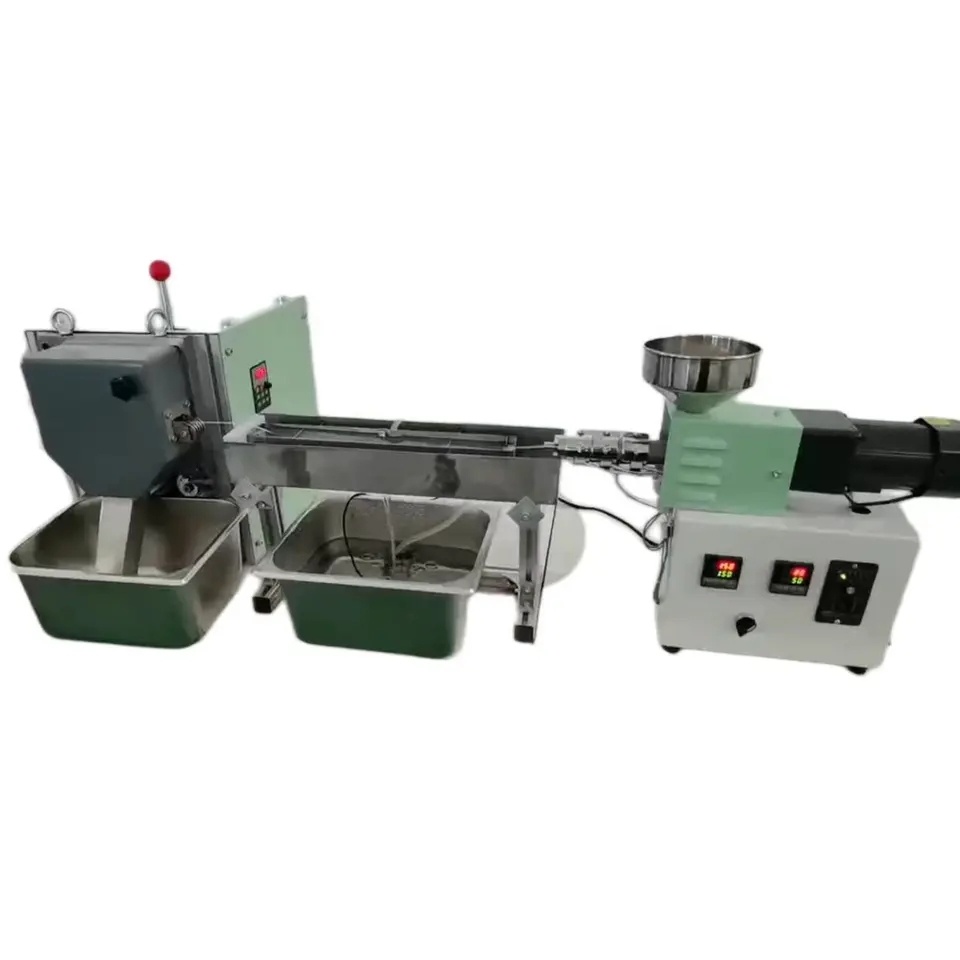

Plastic Double Screw Pelletizing Line Plastic Wire Extrusion 300mm
- Product No.:202372116318
1, Capacity: 0.1-2KG / hr
2, screw rotation speed: max to 15r/min
3, the production line center height: 300mm;
5, line direction: left and right to close the discharge →
6, the installation area: length×width*height = 1.75m * 0.2m * 0.5m
; weight: about 40KG
7. Motor Power: 180W
8. Voltage: 220V 110V, or customers can specify
Main extruder equipment configuration and performance parameters: For ABS/PLA/PCL/PETG/PC/PEEK/PE/PP/TPU/TPE... |
|
Control System |
Not PLC |
Voltage |
220/60 Hz,1phases |
Raw Material |
PE/PP/PVC/ PLA/PC/TPU/ABS/NYNONG... |
Output |
0 -2 kg/h |
Main Motor Power |
180W |
Heating Power: |
1000W |
Screw |
twin screw Extruder |
Diameter |
21 mm. |
Screw L/D |
12:1 |
Raw material |
38CrMoAlA |
surface treatment |
Nitrogenization and polished |
Inner surface treatment |
Nitrogenization and polished |
Max heating temperature |
300℃ |
Barrel Material |
38CrMoAlA |
Inner surface treatment |
Nitrogenization and polished |
The nitride layer thickness |
0.5~0.7 mm. |
The surface hardness |
HV850~940 |
Controlling system |
|
Extruder total Power |
940W |
Control Type |
Single phase electronic speed governor control |
The control system |
|
Heating control zone |
3 |
