Products >> Small desktop extruder >>

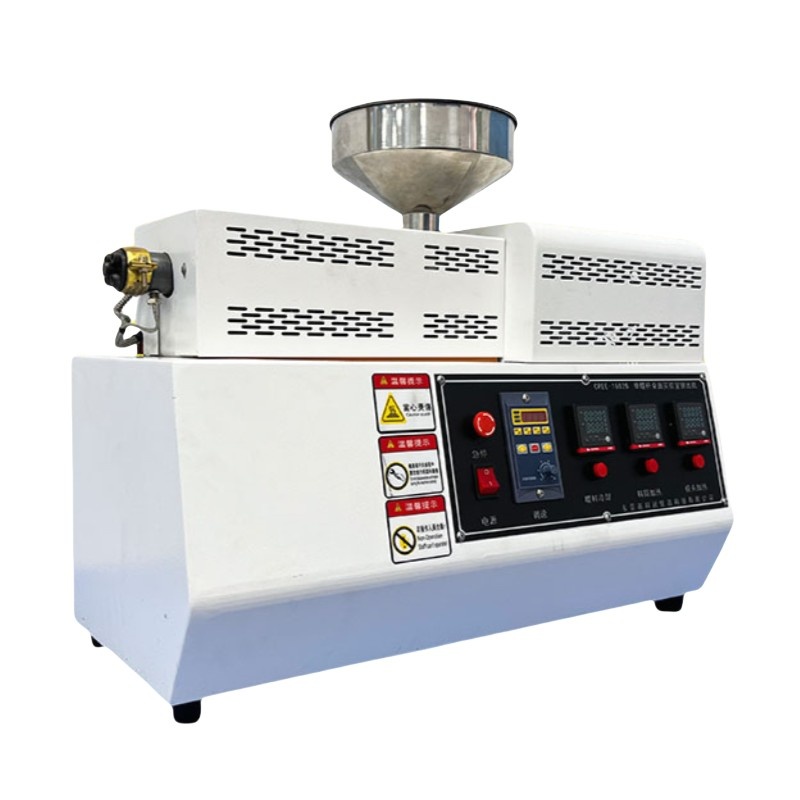

Single screw desktop laboratory extruder

Product No.：2024518172313
Online Inquiry

Desktop Single Screw Extruder is mainly used to process PP, PE, PP-R, ABS and other plastics. Equipped with auxiliary machines, it can manufacture profile, pipes, sheets and other plastic products and granulation. It has the advantage of simple production technological process, high output, stable quality and low cost.

* Product performance of laboratory small single screw extruder:

* Professionally manufactured screw and barrel, high processing precision and quality assurance

* Brand motor drive, screw speed control is stable and reliable

* Adjustable particle size and thickness of the material in the screw fully plasticized and mixed. Application scope of laboratory small single screw extruder:

* Melting and plasticizing extrusion of materials

* Optimization of extrusion process parameters

* Small experimental lines for film, sheet, pipe, pelletizing, etc.

Screw diameter	16mm
Production capacity	0.1-1.5KG/h
Extrusion center height	300mm
Extrusion direction	right→left out
Motor power	370w
Voltage	220V 50HZ
LD	21:1
Screw barrel material	38Crmola,Nitrided
Temperature zone	3pcs
Cooling	Feeding area with silent cooling device
Heating temperature	Normal temperature-350℃ Feeding area with silent cooling device
Machine size(LWH)	640mm300mm550mm
Weight	45kg

1.Suitable for various polyolefin materials: HDPE, PPR, PP,and ABSetc. Adopt advanced human-machine interface control system to realize the automatic control of the whole line.

2.Excellent temperature control system to ensure the stability of the producing process. Integrated design of force water cooling and force feeding groove ensures the evenness and stability of the manufacturing process. 3.High-performance driving system; Wearable and easy to maintain.
