150L air ventilation Aging Test chamber

Product No.：2024518175345
Online Inquiry

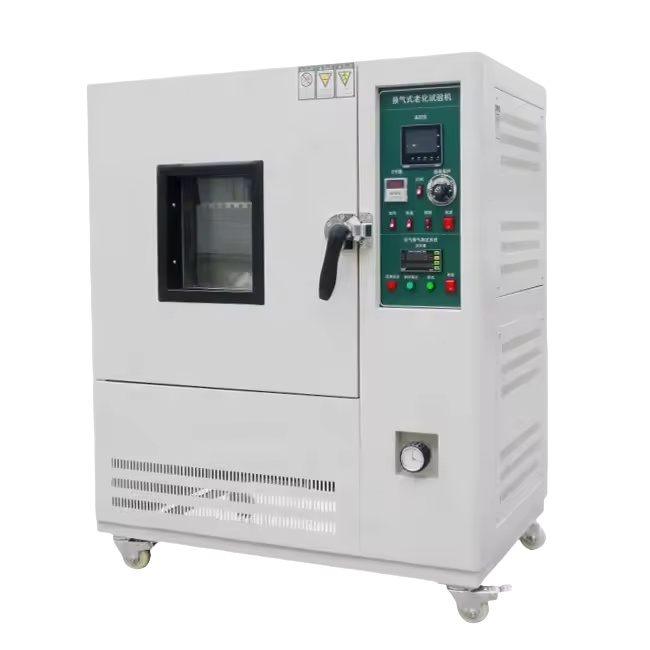

Environmental Air Ventilation Aging Resistance Test Chamber

Ventilation aging test chamber is used to test wires, cables, insulators, or rubber specimen, to compare the tensile strength and elongation of specimens before and after aging test. Aging chamber adopt hot air circulation, prompting specimen aging, strong closed inner chamber, swap air device, over-temperature automatically cut off protection device.

Standards: ASTMD 5374-93(2005), ASTM1149, ISO1431, DIN53509, GB/T7762, ASTM 5423.etc.

Model	1	2	3
Internal Dimension W×H×D(mm)	450×500×450	500×600×500	600×750×600
External Dimension W×H×D(mm)	1000×1000×700	1150×1200×850	1350×1500×1000
Internal and External Material	Material of the inner box is SUS 304# stainless steel, of the outer box is cold-rolled steel with paint coated.
Temperature Range	RT+15ºC~200ºC (300ºC)
Uniformity of Distribution	±2.0ºC
Air Ventilation Rate	0-200 times/hr adjustable, with an ventilative adjustment button, Watt/Hour
Speed of Test Frame ( RPM)	5-10
Power	380V AC 50/60HZ 12A 6KW
