Products >> Rubber testing machine >>

  • Rotorless Rheometer

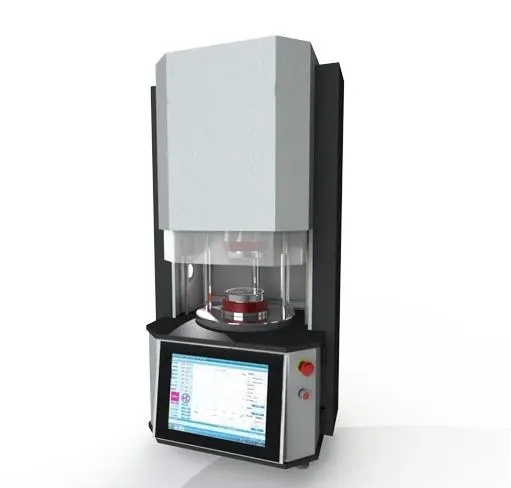

Rotorless Rheometer

Rotorless Rheometer

 Capillary Dynamic Shear MDR Moving Die Laboratory Rotational Torque Bending Beam Rheometer

The rubber no rotor rheometer is a widely used tester in rubber processing industry, rubber quality control and basic research rubber,  For optimize formula of rubber provide accurate data, It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.



Main characteristics:

Computer controlled temperature, upper and lower mould error less than 0.2℃.

Heating speed: RT—200℃,about 10 min .

Good repeatability.

Temperature range

RT~200℃

Heating rate

30degree to 180 degree less than 8 mins

Temperature fluctuation

±0.3°C

Temperature resolution

0.1°C

Torque range

0-20N.M

Torque resolution

0.001NM

Rotor swing angle

±0.5℃ ,±1℃(standard) ,±2℃

Swing frequency

100r/min(1.66HZ)

Consumed power

800W

Power

50HZ, 220V±10%

Out size

640mm×580mm×1300mm

Weight

210kg
